Ozone
The discovery and benefits of ozone dates back well over 100 years. Recent developments in technology have allowed a new generation of applications and products, using ozone, to emerge.

 Ozonation Process:
Oxygen molecules (O2) are split when passed through a gap formed by a high voltage electrode, dielectric and ground electrode. High voltage, at high frequency, is then applied to the electrodes. The plasma formed in the gap is known as a Corona Discharge, and it is here that some of the oxygen molecules split and recombine to form ozone:
formula2
Ozone is an unstable compound, and may react in a simple oxidation where one molecule splits off or in a reaction called Criegee mechanism where all three oxygen molecules are used. In most inorganic reactions only one atom of the ozone molecule enters into the oxidation; the other two are released as molecular oxygen. Ozone reacts readily with unsaturated organic compounds, adding all three oxygen atoms at the double or triple bond. In addition, ozone can act as a powerful disinfectant, rupturing the cell wall to inactivate bacteria, fungi, viruses, etc.

sga21

SGA Series: Ozone/Oxygen Systems:
The SGA Series Ozone/Oxygen Systems are the most powerful and compact ozone systems in their class. Each combines a high concentration, air-cooled ozone generator with an onboard oxygen concentrator in an attractive, compact, wall-mountable stainless steel housing.

The powerful SGA Series is easy to operate with a convenient, intuitive control panel. To easily manage the ozone generating process, it offers: 0-100% variable power control, feed gas control, inlet air pressure and reactor back-pressure gauges, power supply feed back reference meter, and LED ozone production indicator.

All SGA Series Ozone Generators can be controlled by a 0-10vdc signal with the optional Automatic Proportional Control (APC) installed. This option is ideal when automatic and continuous control of ozone output is required for a specific process or application.

A highly efficient, reliable ceramic/titanium reactor cell uses an exclusive Floating Plate Technology™. It is powered by advanced, high-frequency pulse modulated variable control power supply. Responsive, accurate ozone output control is assured by instantaneous amplitude modulation and proven stability of the Floating Plate Technology™ reactor cell design.


The SGA Series Ozone Generators are engineered to meet the ozone process requirements found in the most demanding applications, yet with an efficient design that assures minimal maintenance and years of trouble-free operation.
Model
SGA11
SGA21
SGA22
SGA23
SGA24
SGA43
SGA44
SGA53
SGA63
SGA64
Ozone production g/hr (lbs/day)
12 (0.6)
18 (1.0)
30 (1.6)
45 (2.4)
60 (3.2)
90 (4.8)
120 (6.4)
135 (7.2)
180 (9.6)
240 (12.8)
Oxygen feed gas flow
10
10
20
30
40
60
80
90
120
160
Ozone Concentration % wt
3%-7%
4%-8%
4%-8%
3%-8%
3%-8%
3%-9%
3%-8%
3%9%
3%-8%
3%-8%
Max reactor pressure psi
15
15
15
15
15
15
15
15
15
15
Compressed air req scfm
3
3
6
9
12
18
24
27
36
48
Compressed air pressure psi
20
20
30
30
30
40
40
40
40
40
Feed oxygen flow scfh
0-15
0-15
0-20
0-30
0-40
0-80
0-80
0-90
0-120
0-160
Air cooling fan scfm
240
240
240
240
240
480
480
720
960
960
Compressed air inlet (fnpt)
1/4"
1/4"
1/4"
1/4"
1/4"
1/2"
1/2"
1/2"
1/2"
1/2"
Ozone outlet (tube)
1/4
1/4"
1/4"
1/4"
1/4"
1/2"
1/2"
1/2"
1/2"
1/2"
Dimensions H x W x D inches
22x18x11
22x18x11
22x18x11
22x26x11
22x26x11
31x34x29
31x34x29
55x34x29
55x34x29
55x34x29
Weight lbs
70
75
85
110
115
220
230
330
375
460
Power requirement Volt, Hz
115V
60Hz
or
230V
50/60Hz
230V
50/60Hz


SGC Series: Ozone/Oxygen/Compressor Systems

The SGC Series adds an extra feature to the SGA Series by combining a built-in, oil-less air compressor in the cabinet. Just plug it in to produce up to 25 g/hr of high concentration ozone. The SGC Series is the easiest to operate and the most complete ozone generation unit you will ever use.


sga24
SGC Series
Model
SGC10
SGC11
SGC21
SGC22
ozone production g/hr (lbs/day)
7.5 (0.4)
10 (0.5)
16 (0.8)
25 (1.3)
Air cooling fan scfm
240
240
240
240
Ozone Outlet (tube)
1/4"
1/4"
1/4"
1/4"
Dimensions HxWxD inches
22x18x11
22x26x11
22x26x11
22x26x11
Weight lbs
80
85
90
95
Power requirement Volt, Hz
115V
60Hz
or 230V
50/60Hz

GA10 Ozone/PSA Air Dryer

Rugged, lightweight and compact, the GA10 Ozone/Dry Air Generator is an exceptional value. Engineered to connect to a local air source, this economically priced system includes a 5 micron filter regulator with an auto drain and coalescing filter as standard equipment.


g10 GA10 Ozone/PSA Air Dryer
Ozone production @10 scfh
1.10 g/hr
Ozone production @20 scfh
2.67 g/hr
Ozone production @30 scfh
4.36 g/hr
Compressed air pressure
80-125 psi
Maximum reactor pressure
6 psi
Compressed air inlet (fnpt)
1/4”
Ozone outlet (tube)
1/4”
Power requirement
115V 60HZ or 230V 50/60HZ
Dimensions
14.5” x 13” x 8.5”
Weight
22lbs

• Specifications subject to change without notice.


m18 headline
m18 line



Portable ozonated water production for tank sanitization, surface disinfection and other applications has never been easier or more cost effective.

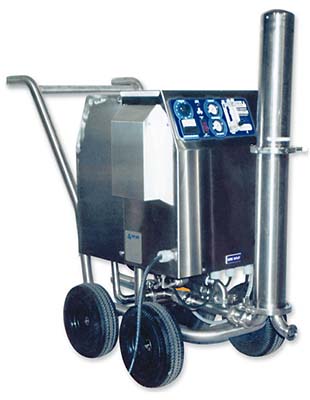

The M18 Portable Ozone System is a rugged, all stainless steel package that uses a Pacific Ozone Technology 18 g/hr (1 lbs/day) high concentration ozone/oxygen system with onboard pump and injector for efficient ozone mass transfer. Simply connect plant water in and get high concentration ozonated water out with no loss of flow or pressure.

The Standard M18 System Includes:

  • All stainless steel construction
  • Water resistant enclosure
  • Onboard air compressor
  • Onboard oxygen concentrator
  • Onboard booster pump
  • Onboard side stream injector
  • Automatic flow switch

m18


m18 ser
FEATURES:
0 - 100 gpm water flow
Operating Pressure to 85 psi
Air-Cooled Ceramic and Titanium Reactor Cell
Patented Floating Plate TechnologyTM
5-Micro Filter/Regulator with Auto Drain
50' power connection cable
Optional Off-Gas Decomposer




CONTROLS:
Variable Output Control 0-100%
Automatic Flow Switch
Automatic Door Switch
Over Temperature Safety Switch
Feed Gas Flow Control
LED Visual Ozone Indicator



m18 line

Product Description


Part Number

Specifications:

Ozone Production
10scfh

Ozone Concentration

Water Flow Range

Maxium
Water Pressure

Water Inlet
Connection

Water Outlet
Connection

Feed Gas Flow Range

Variable Control

Power Consumption

Power Supply Fuse

Air Cooling

Power Cord

Power Requirement

Height

Width

Depth

Weight



Portable Automatic Ozone
Contact System

R-CAM181     115V model
R-CAM182     230V model



18 g/hr - 1.0 lbs./day

+90% @10 scfh

5 - 100 gpm


85 psi


1.5" Sanitary Fitting


1.5" Sanitary Fitting

0-20 scfm

0-100%

1750 watts

8 ampere

240 scfm

50'

115V or 230V 50/60Hz 1 phase

39 inches

25 inches

37 inches

210 lbs





m18
m18

Options:
An optional portable ozone gas
detector is available for ozone
off-gas monitoring and detection
along with optional ozone degas
chamber and catalytic ozone
decomposer to minimize ozone
off-gas from the water process.





Dissolved Ozone Controller


The C250 Dissolved Ozone Process Controller provides continuous and accurate control of dissolved ozone levels in water. The dissolved ozone analyzer uses a programmable electrochemical monitor, with a direct sensing ozone probe. This provides real time ozone concentration output to a microprocessor-based, single loop, fully-programmable PID controller.

The PID controller sends a proportional signal to the ozone generator, controlling the ozone gas concentration delivered to the process from the ozone generator. The C250 Controller is housed in a NEMA4 wall-mountable enclosure and includes a 25’ ozone sensor cable and 10’ control cable to the ozone generator. 		c250


d412 Ozone Destruct Chamber

The D412 Destruct Chamber is a durable T316 stainless vessel, with a 1” MPT fitting that easily attaches to an ozone contact tank, de-gas separator or other ozone contact systems. This helps convert any unused ozone into oxygen before venting it into the atmosphere.

The D412 uses an Mn02/Cu0 mixture as a catalyst, with a thermostatically controlled heating element to remove water vapor for long lasting ozone decomposition potential.





(Manufactured in the U.S.A. by Pacific Ozone Technology)
